Ghannouch electrical center

Project

Construction of a 400 MW combined cycle power plant in Ghannouch - Gabes

Description of the work

Document

Construction of a 400 MW Combined Cycle Power Plant in Ghannouch - Gabes

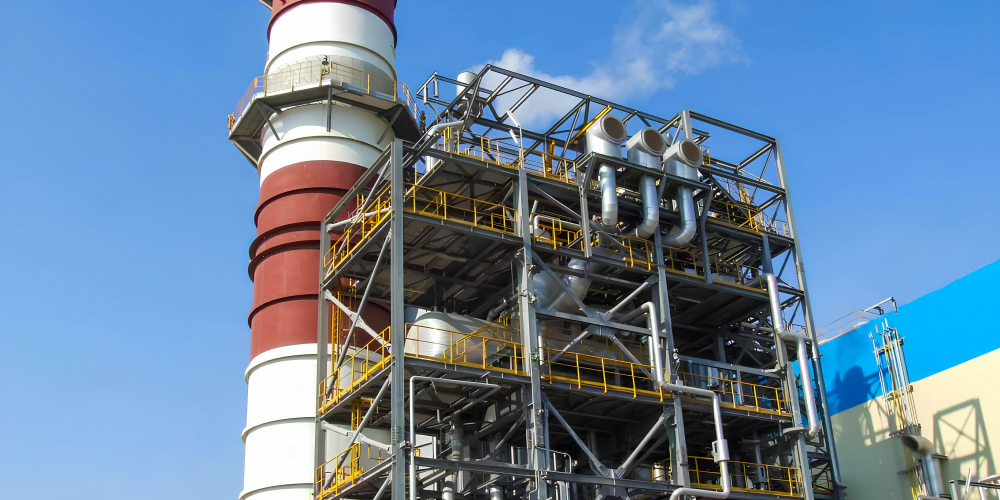

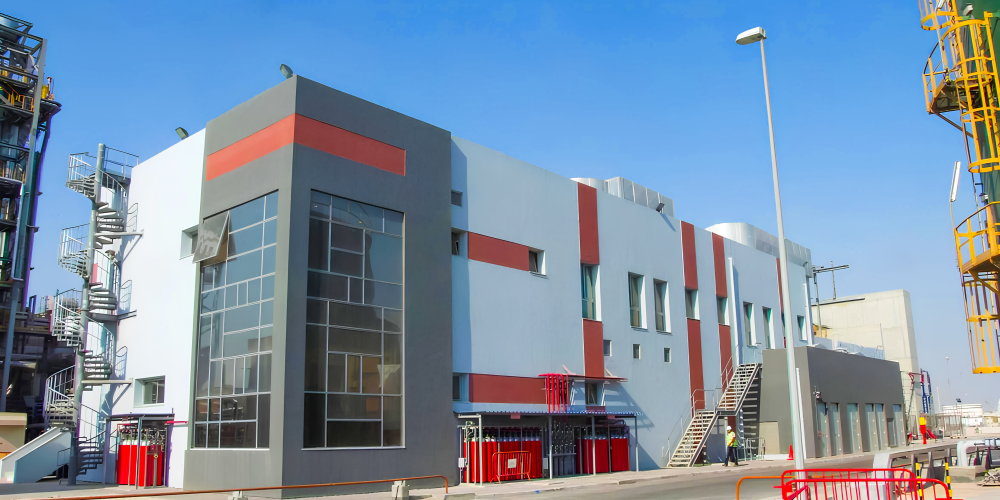

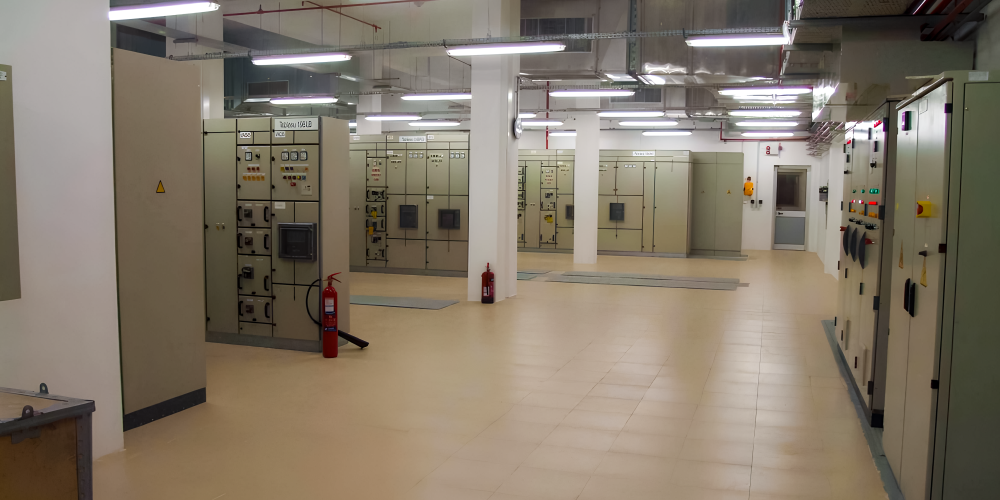

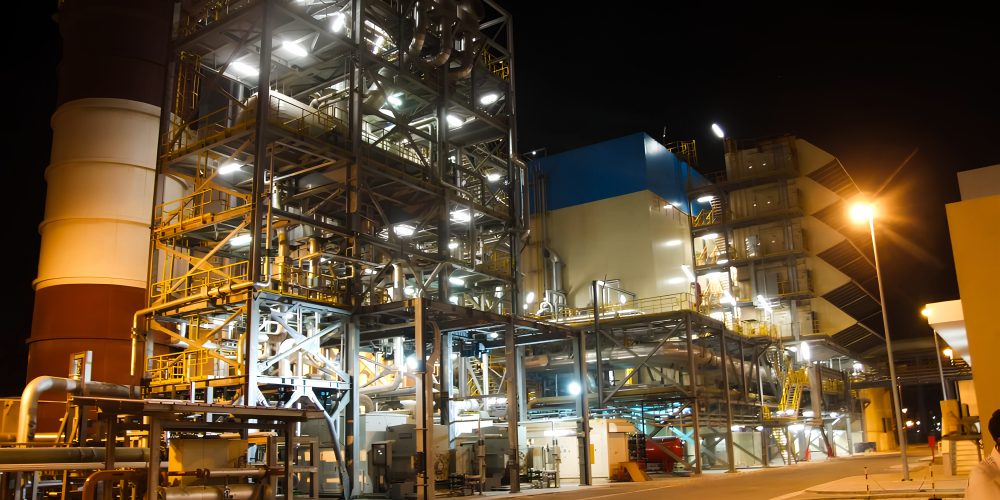

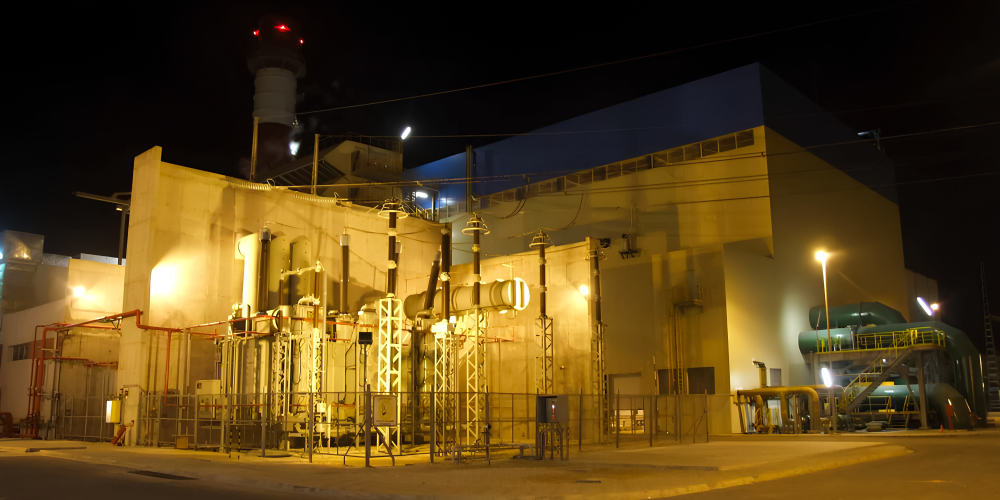

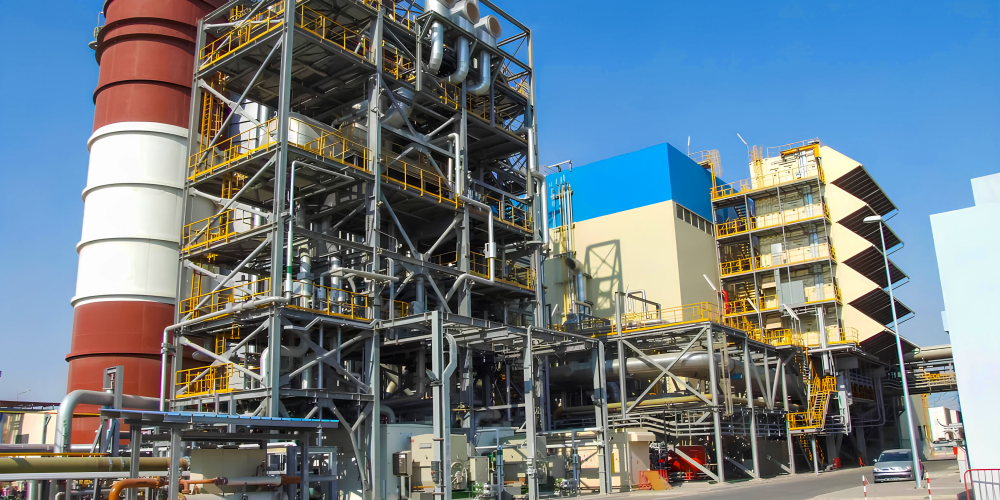

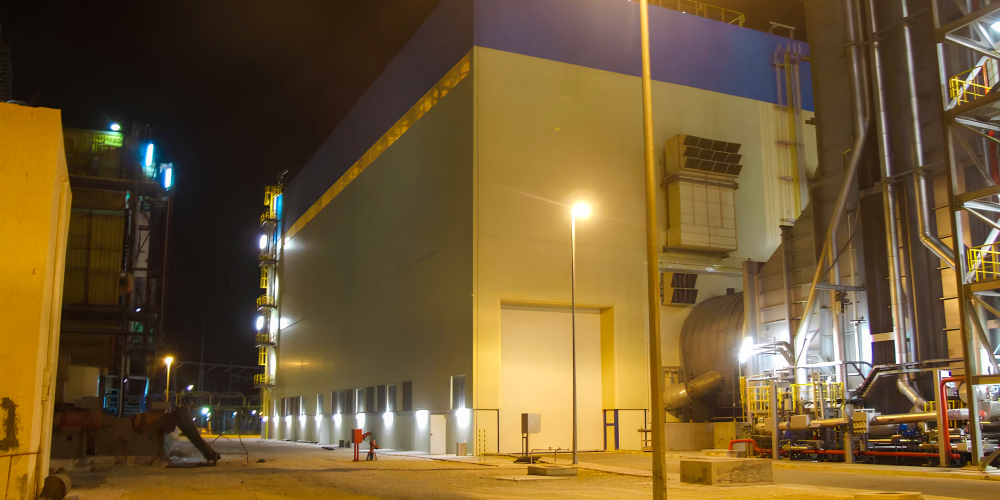

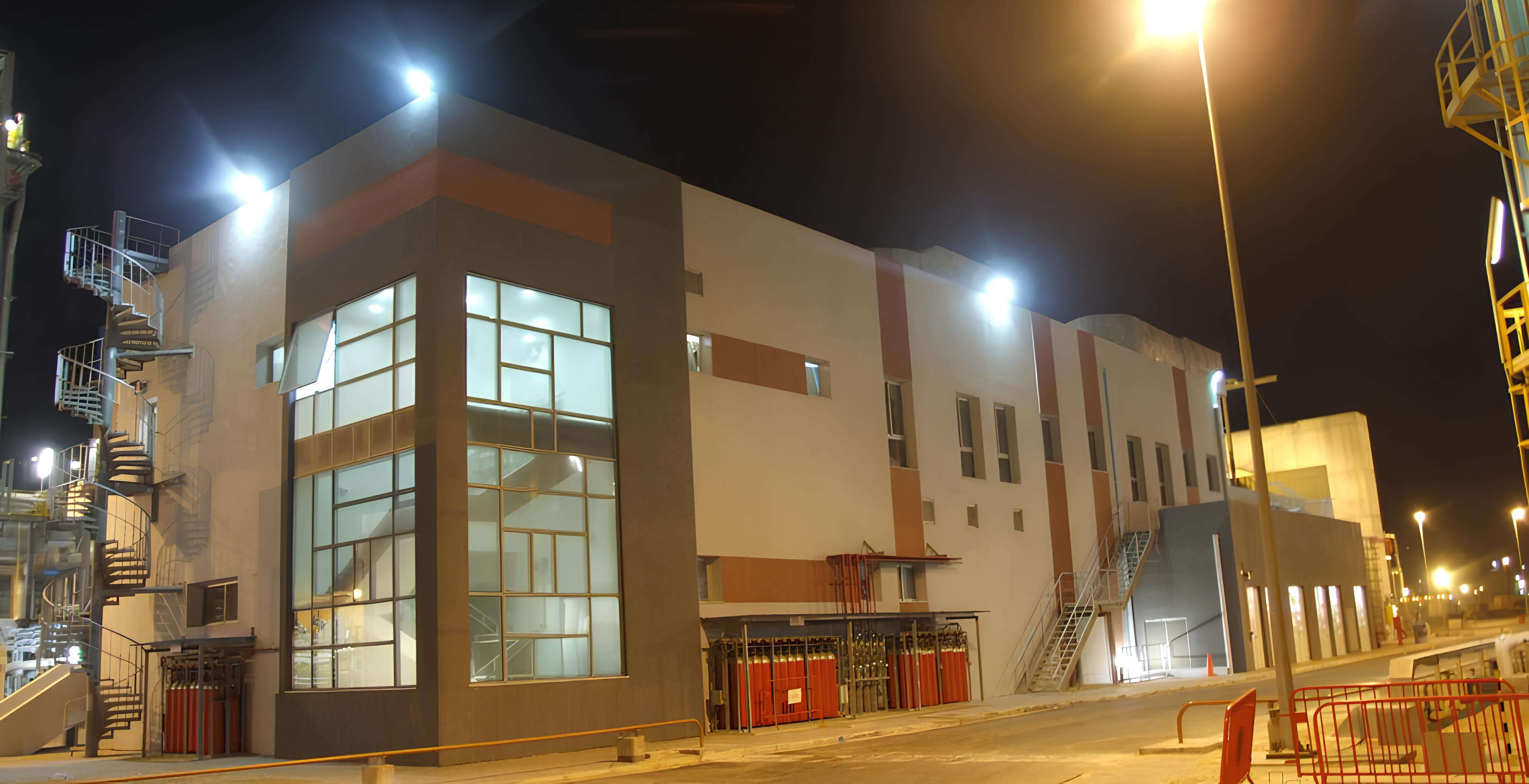

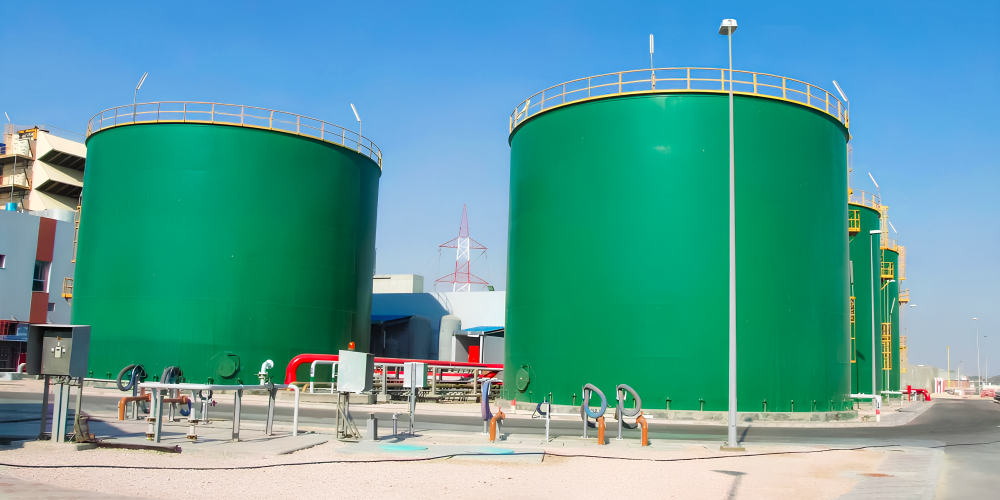

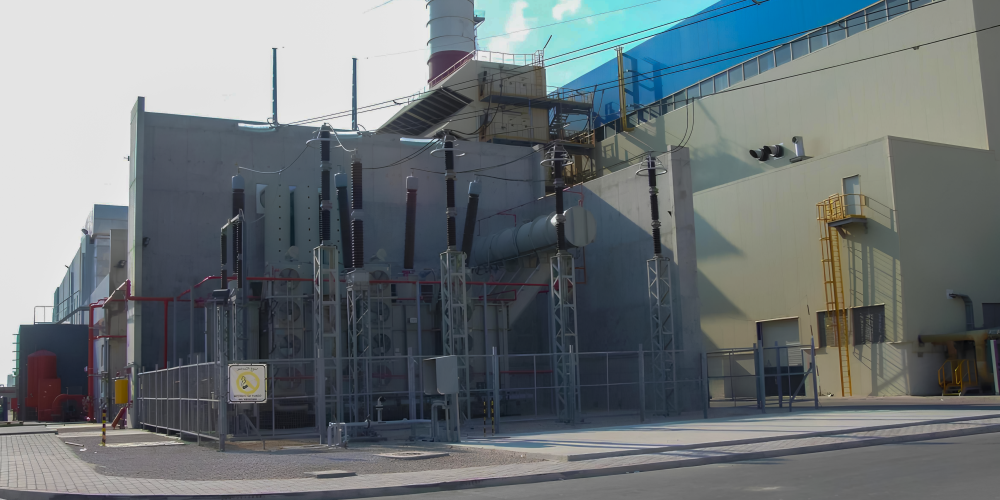

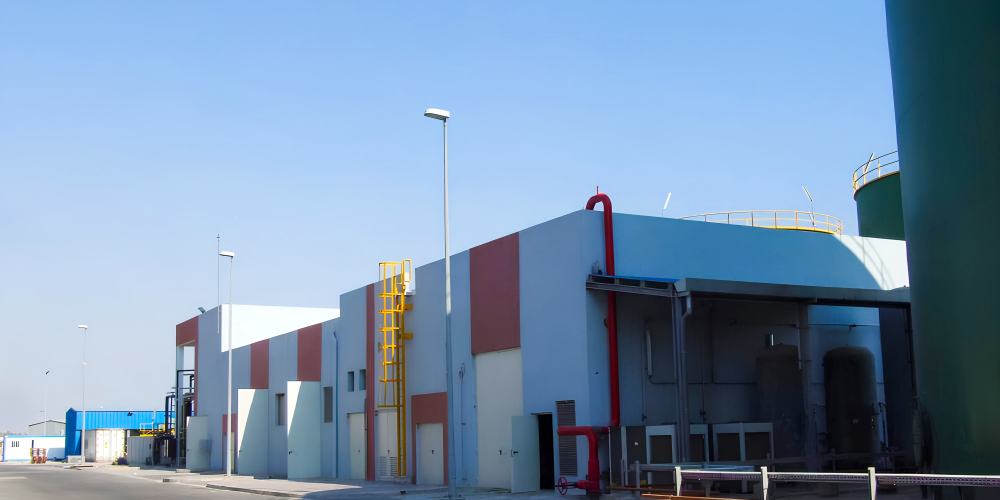

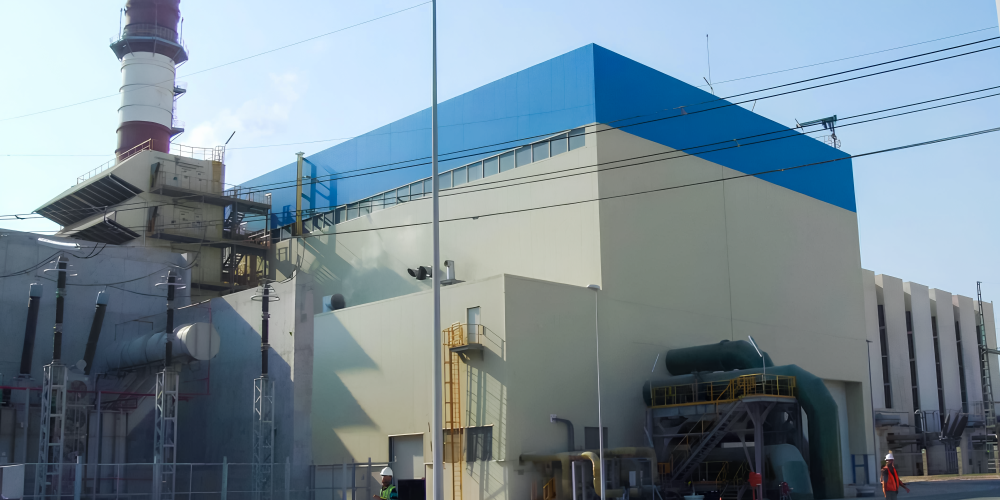

This contract concerns the execution of civil engineering works for the Ghannouch combined cycle power plant (1 x 400 MW). These works include the foundations for the turbines (alternator, steam, and gas), as well as the construction of an electrical building, utilities building, feed tank, transformers, recovery boiler, pumping station, tanks, roadways, and various networks.

Project Details

Client:Tunisian Electricity and Gas Company – STEG

Location:Ghannouch, Gabes

Project Completion:2011

Amount:37,200,000 TND

Scope of Work:

Earthworks (cut and fill)
Main structural work
Secondary works
Electrical works
Steel structure works

Project Specificity:

A major challenge of the project was the strong commitment to comply with HSE (Health, Safety, and Environment) rules as a top priority. The aim was to achieve exemplary control of safety and environmental aspects during the construction of the power plant, with the ultimate goal of "zero accidents"—ensuring hygiene, safety, and well-being of all individuals on site, and preventing any bodily or material damage.

Key Figures:

73,000 m³ of fill earthworks
20,000 m³ of concrete
1,800 m³ of reinforced steel
1,500 m² of steel structure
